Cello Series Harmonica 3S
Powerful Performance Meets Perfect Dispersion.

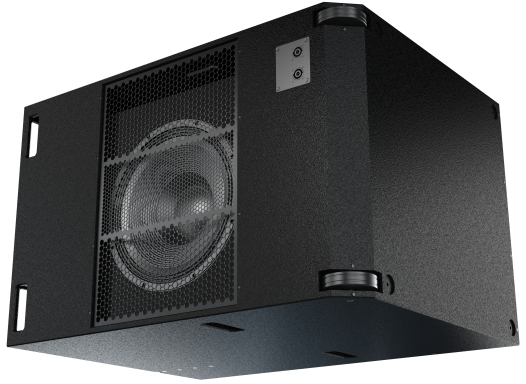

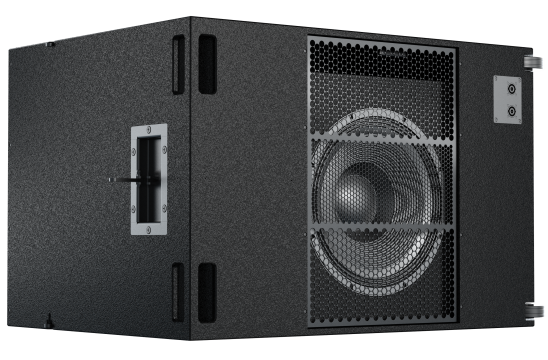

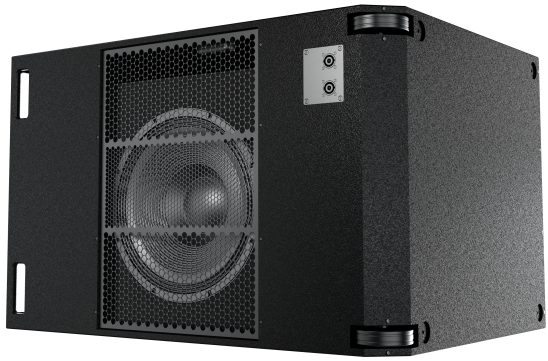

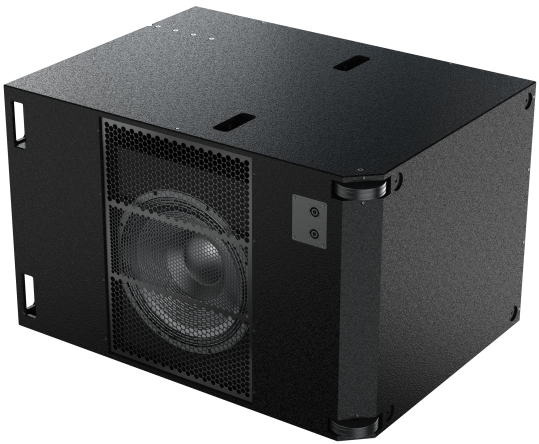

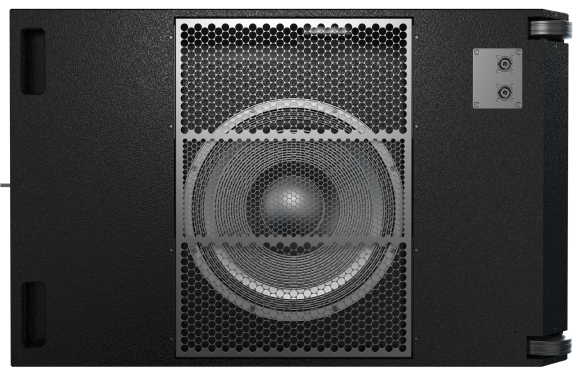

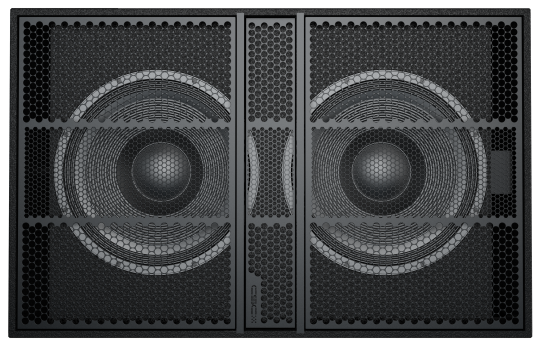

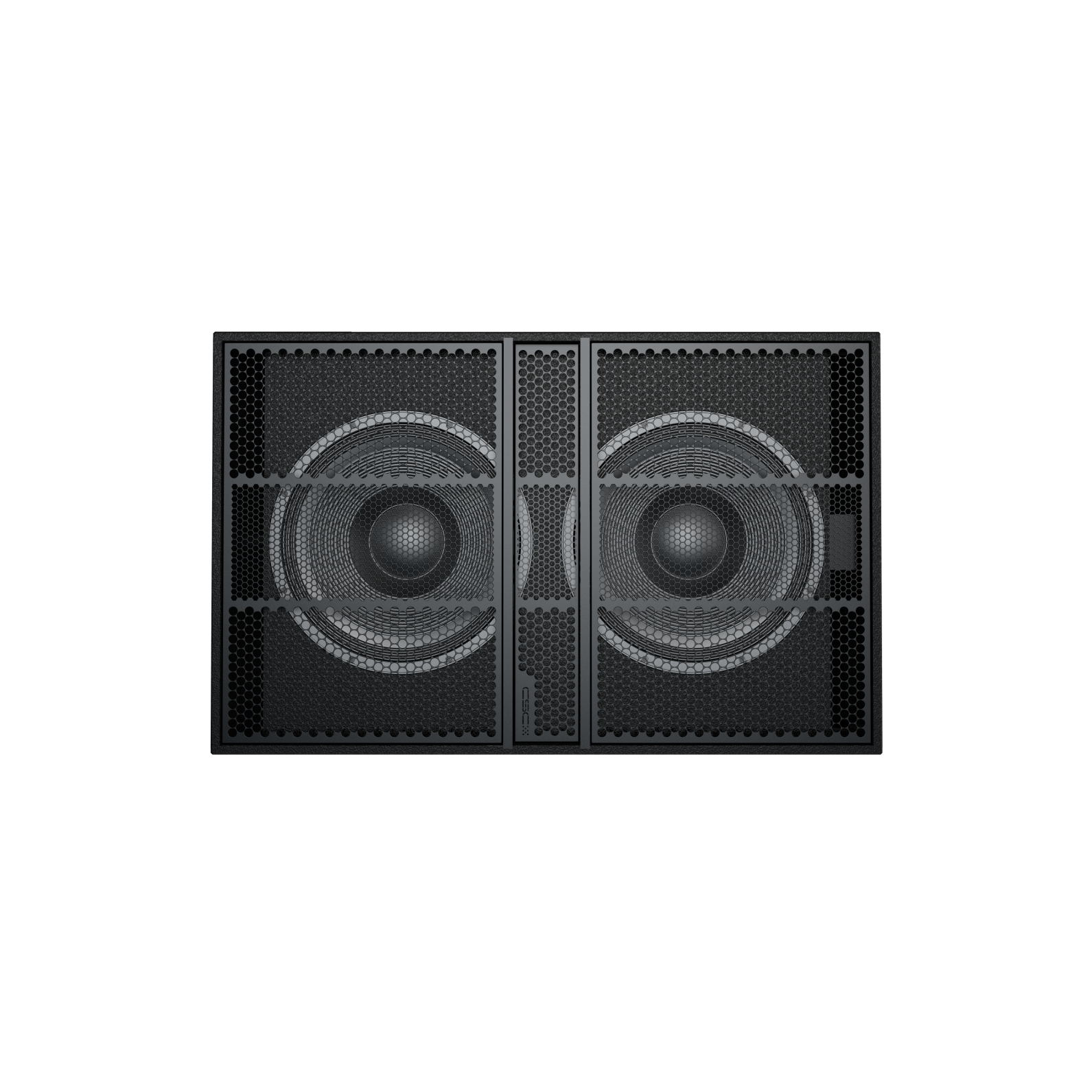

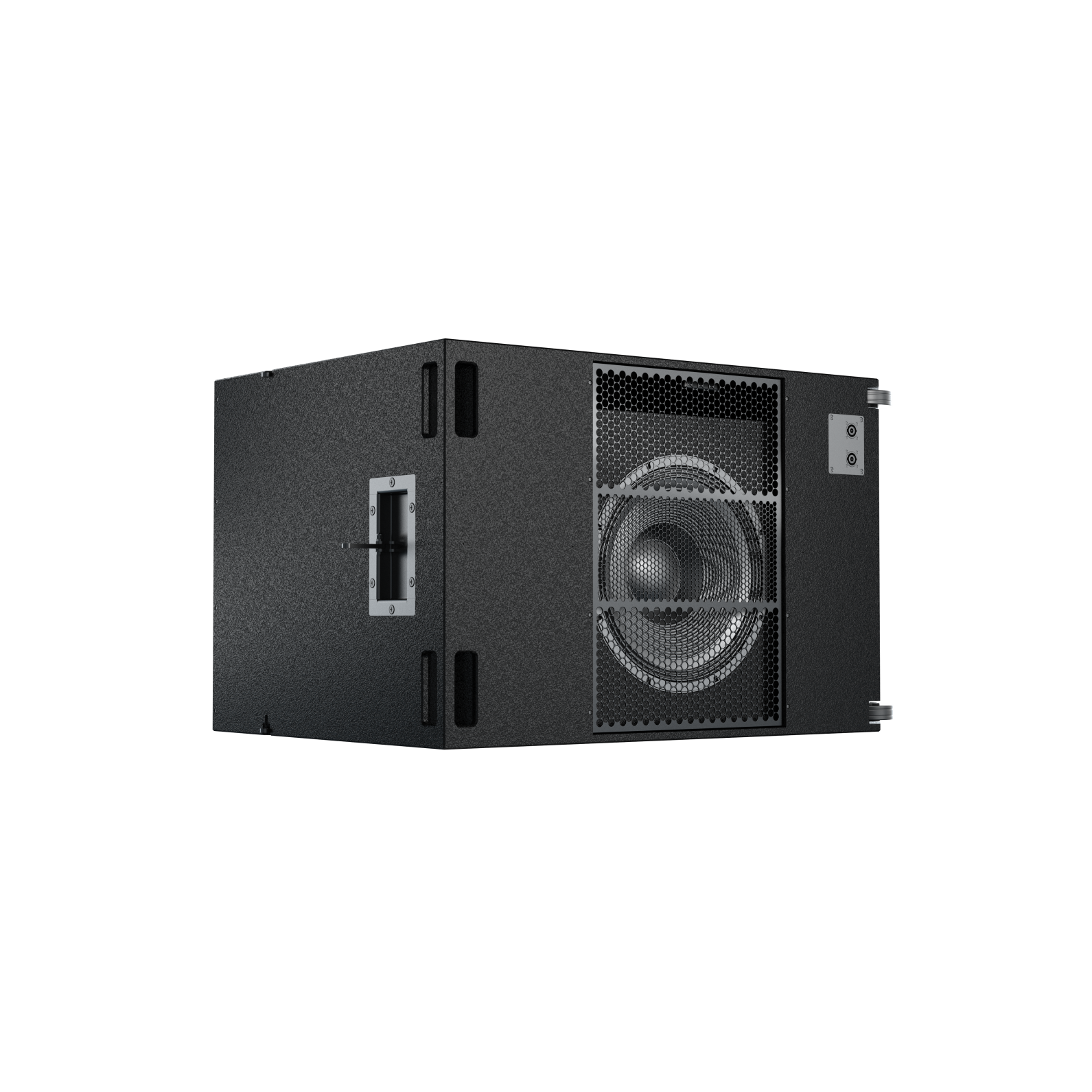

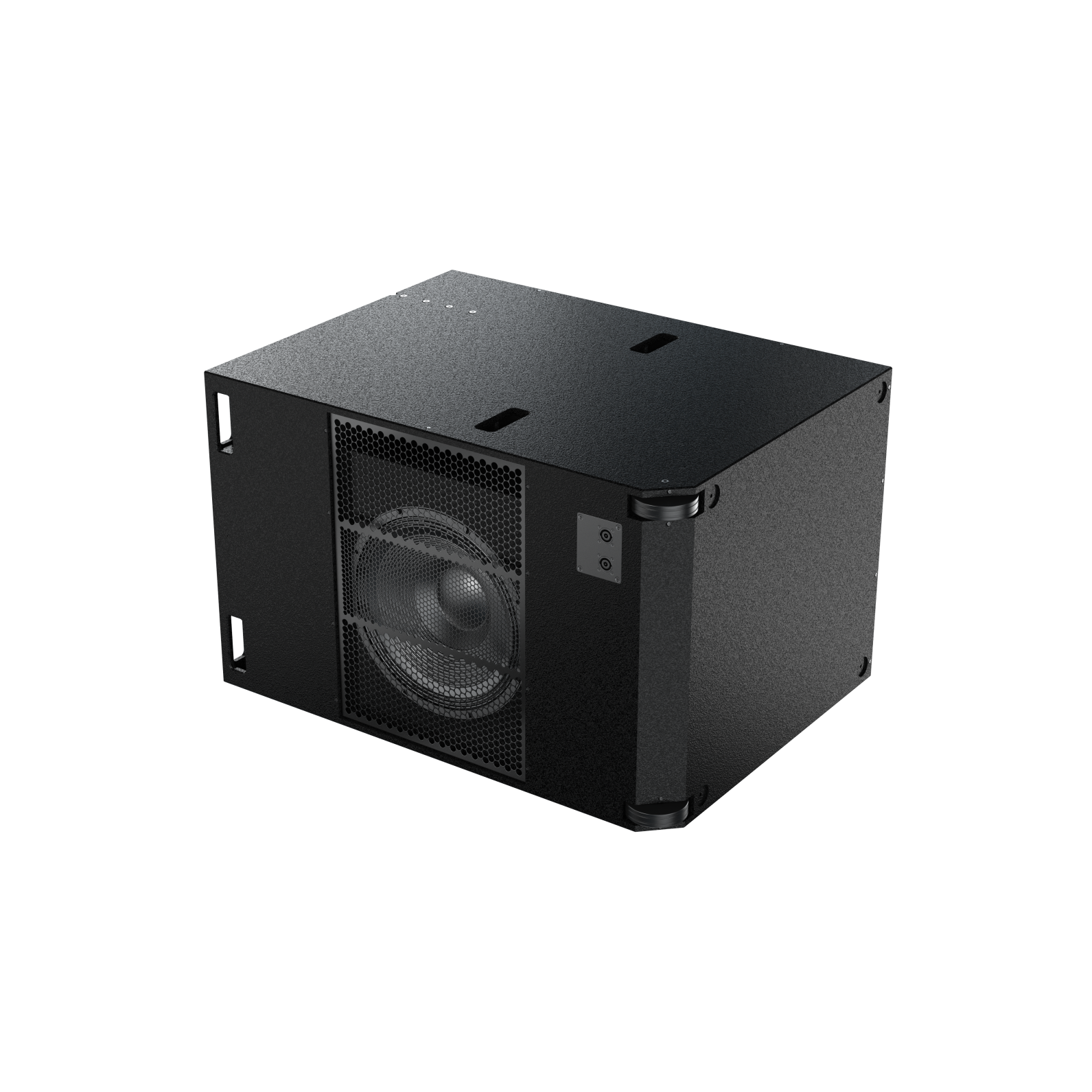

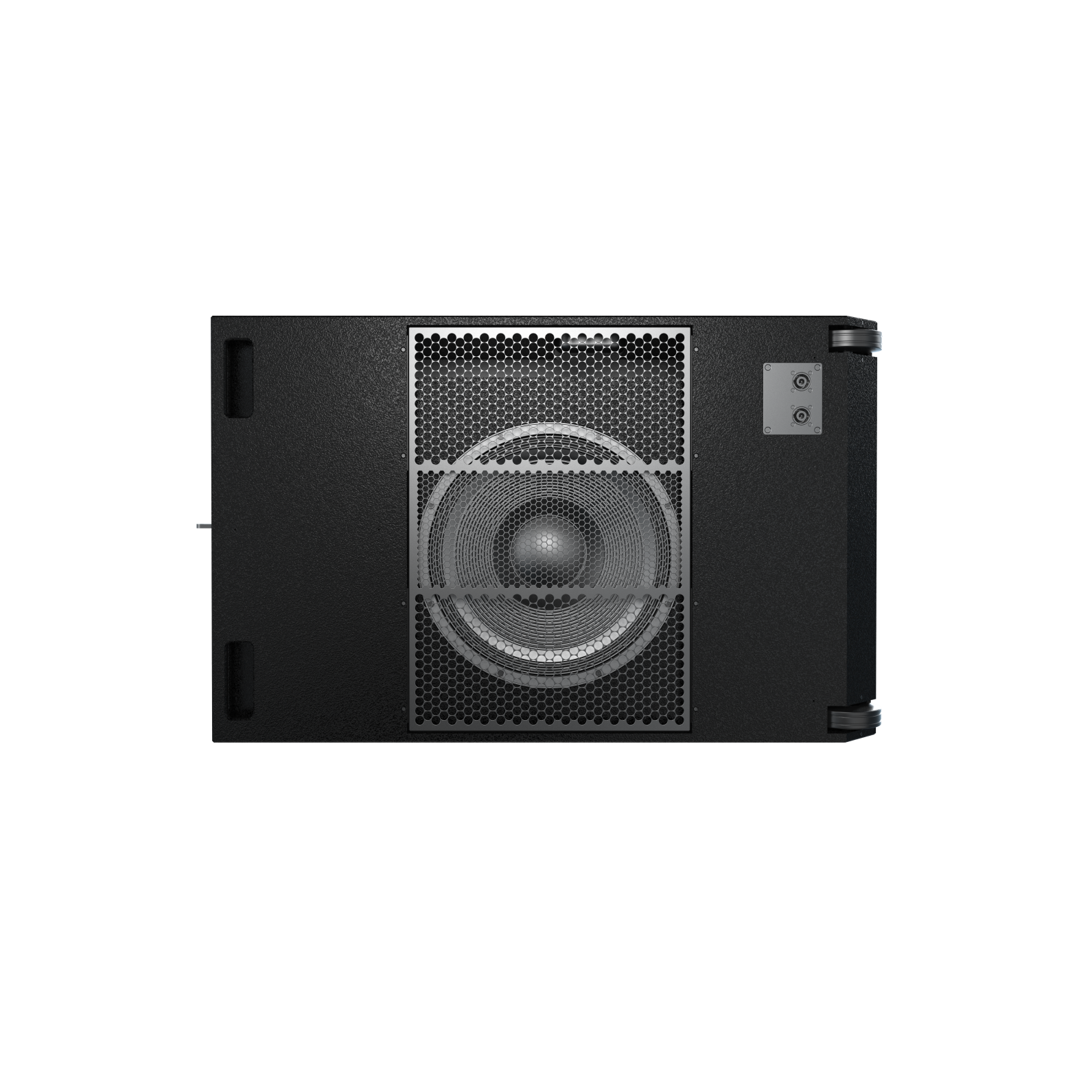

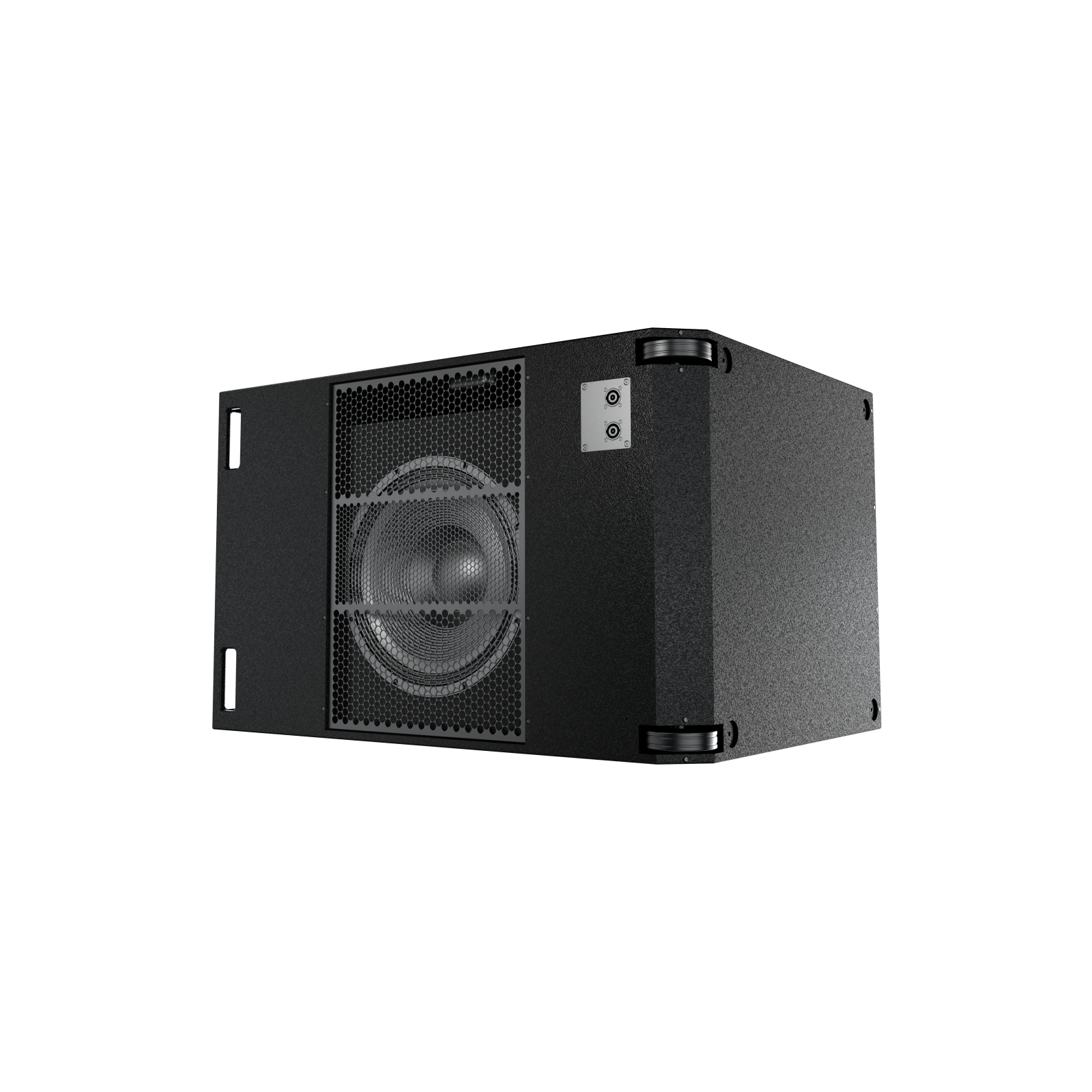

The Harmonica 3S is a high-performance, triple 18" cardioid subwoofer, featuring powerful neodymium drivers, designed for ground-stacked deployment. Engineered for seamless integration with Harmonica 1 and Harmonica 2 line array systems, this subwoofer offers a unique solution for venues where traditional floor-mounted subwoofers are undesirable, particularly in live applications where stage space is critical or where the subwoofer is positioned near a wall, minimizing structural excitation.
Primarily functioning as a low-frequency extension, the Harmonica 3S delivers a deeper, more impactful bass response. Its cardioid design effectively cancels rear-firing energy, maintaining a clean stage and audience area while enhancing low-frequency clarity
Key Features
- Precision-engineered waveguide geometry to minimize inter-cabinet interference.
- Perfectly tuned iso-phasic waveguide for flat wave front and optimal phase response
- Long waveguide length for wide frequency control
- Extreme directivity control in HF section
Applications
- High-end permanent installations
- Demanding touring applications
- Concert venues
- Theatres
- Auditoriums
- Outdoor events
Technical Specification
| MODEL | Harmonica 3s |
|---|---|
| Type | Two-way bi-amped line array element |
| Frequency Response (1) | 55 Hz - 20 kHz ± 3dB |
| Drivers | LF: 2 x 18" drivers with a 3" voice coil |
| HF: 1.4" compression driver with a 3" voice coil | |
| Recommended Amp. Upto | 1800 Wat ts |
| Sensitivity (1 W / 1 m) | LF: 97 dB, HF: 110 dB |
| SPL Peak | LF: 131 dB, HF: 135 dB |
| Nominal Impedance | LF: 8 Ohms, HF: 8 Ohms |
| Dispersion | 80° (H) x 15° (V) |
| Crossover | |
| Enclosure | Baltic birch ply |
| Finish | Black tex tured paint |
| Protective Grill | Steel grill |
| Connectors | 2x Neutrik NL4 |
| Pin Connections | LF +1, -1: HF +2, -2 |
| Standard Colors | Black / White |
| Fittings | Flying frame |
| Dimensions - Product (in mm) | (W) 732 x (H) 320 x (D) 665 |
| Dimensions - Including packing (in mm) | |
| Net weight(kgs) | 35 |
| Shipping Weight(kgs) | 40 |
About Series

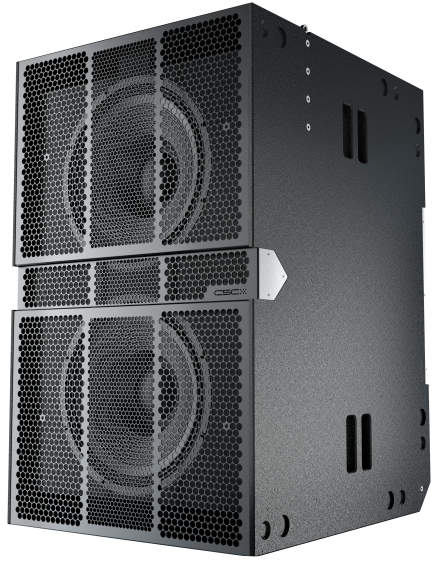

The Cello Series are crafted to produce acoustically transparent, tonally rich, and spatially neutral loudspeakers. Engineered with precision for a powerful performance without using linearity, these loudspeakers offer unparalleled depth and clarity, providing an immersive audio experience akin to the warmth and resonance of the instrument itself. When paired with our Contrabass Series subwoofers, the combination excels in both pro-install and touring applications, creating a cohesive and impactful soundstage.
