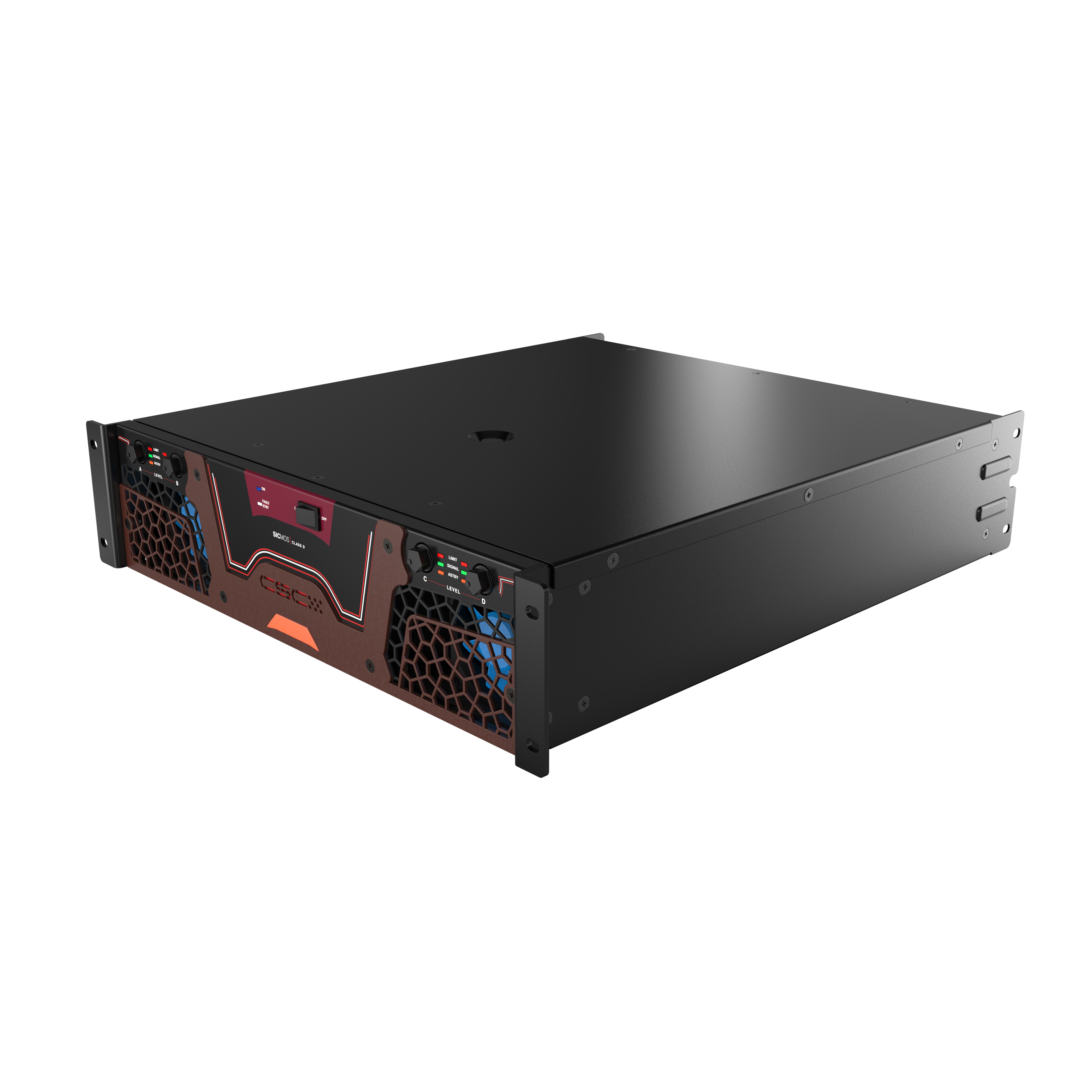

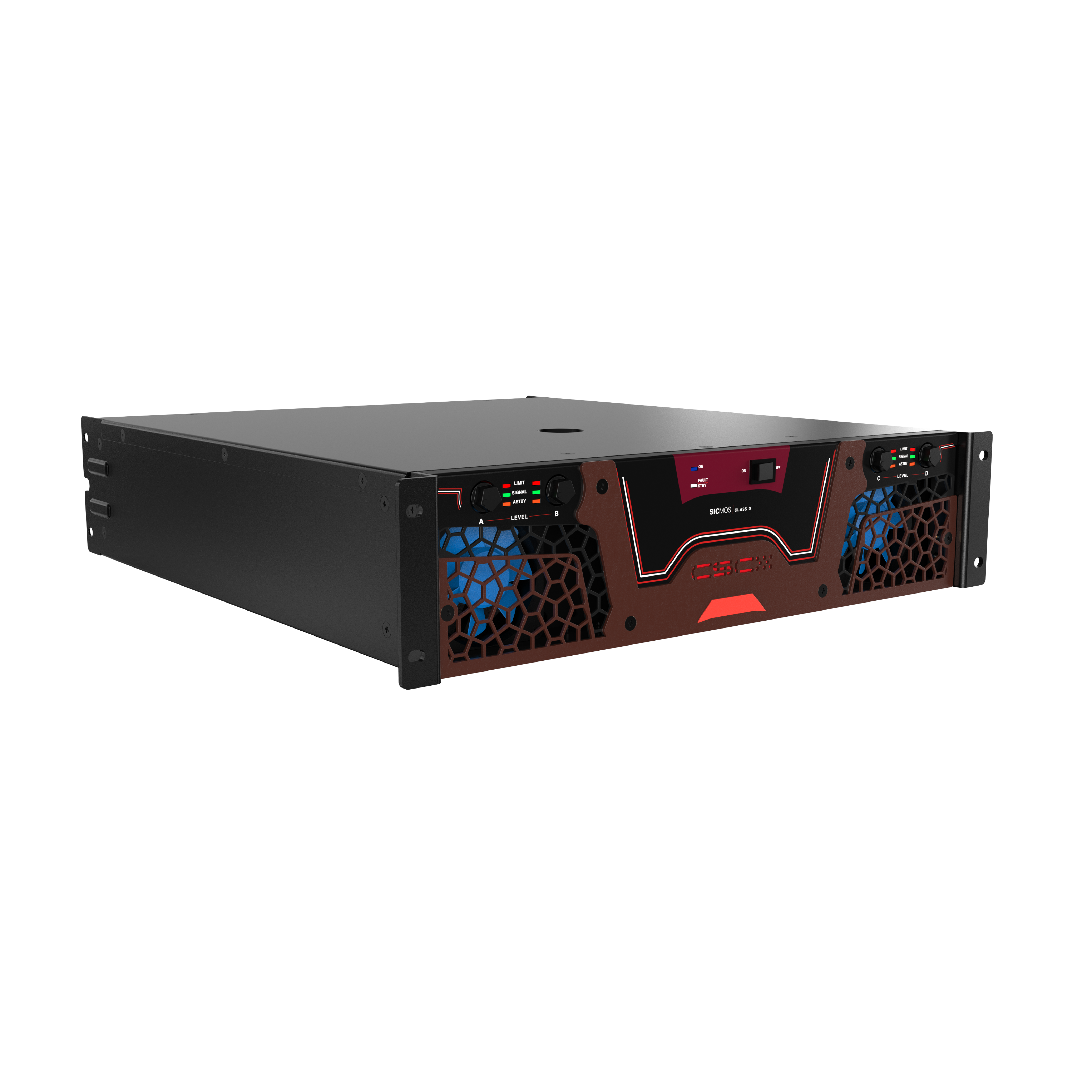

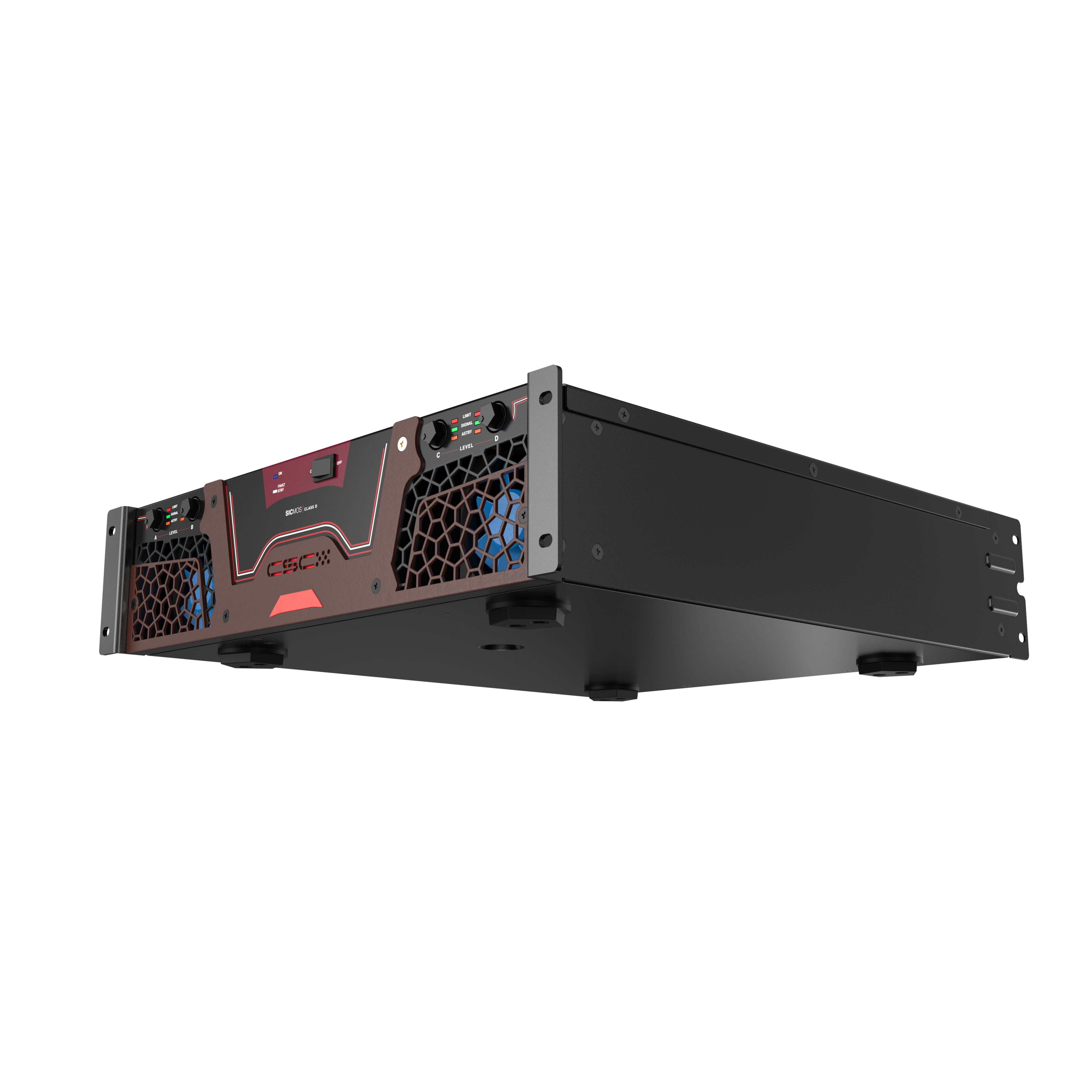

MOD 2K4 / MOD 3K4
High-Current Four-Channel Power Amplifiers with Silicon Carbide Technology
The MOD Series 4-channel amplifiers are designed for both installation and touring applications. They are best suited for powering subwoofers, line arrays, and point-source loudspeakers that demand high power, versatility, multi-channel output, and robust reliability. They empower professionals to drive complex loudspeaker arrays and multi-zone audio setups with consistent, uncompromised sonic performance.
Utilizing Silicon Carbide devices ensures low switching loss, delivering outstanding efficiency and expanded dynamic headroom. The hybrid linear/Class-D output guarantees stability and punch, making them the go-to solution for houses of worship (like churches), stadiums, auditoriums, high-end clubs, bars, gymnasiums and premium event spaces.
The modular PCB design ensures fast, hassle-free service—minimizing downtime and maximizing operational uptime for critical applications.
FEATURES AND APPLICATIONS
Key Features
- Multi-channel flexibility for complex installations and large venues
- Optimized for line arrays and multi-zone coverage
- Transparent, sonically neutral output for pristine audio quality
- Rugged 2.5U chassis and advanced protection features for reliable performance
- Simple modular service for quick maintenance and system upgrades
Applications
- Touring rigs for concerts, stadiums, and auditoriums
- Exclusive clubs, upscale hospitality venues, and luxury rental systems
- Religious spaces, and high-end multi-zone audio environments
Technical Specification
| MODEL NO | MOD 2K4 | MOD 3K4 |
| No of channels | 4 | 4 |
| Power / channel | All channels driven | |
| 2 ohms | 800 | 1200 |
| 4 ohms | 800 | 1200 |
| 8 ohms | 500 | 750 |
| Input Sensitivity @4 ohms | 1.42 V | 1.73 V |
| Gain | ||
| Distortion : 20 Hz-20 kHz : 2 dB | 0.10% | 0.10% |
| Slew Rate | 30 V/µs | 35 V/µs |
| Frequency Response : +0/-1dB | 20-20k | |
| SNR | ||
| Max Input : RMS | 10 V | |
| Input Impedance : ohms | 10 k | |
| Damping Factor : 8 ohms : 100Hz | 1500 | |
| Output Circuitry | class - D | |
| Connector : Input / Link : | XLR | |
| Connector : Output | Speak on | |
| Controls : Front | level | |
| Controls : Rear | Mono-stereo/Bridge & standby | |
| Indicators | signal, limit, standby | |
| Protection | over current, over temperature, mismatched loads, over voltage,Short circuit | |
| Cooling : 2 X Fans | Temperature-controlled 2-step speed fans | |
| Mains Operating Range | 170-260 VAC | |
| Mains Cable | fixed 1meter in length | |
| Dimensions : W x D x H : (in mm) | 486 X 487 X 110 | |
| Weight : Net (kgs) | 22.65 | 26.76 |
| Weight : including packing Net (kgs) | 25.06 | 29.14 |
